Tender lift
About the Product

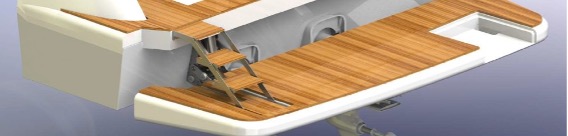

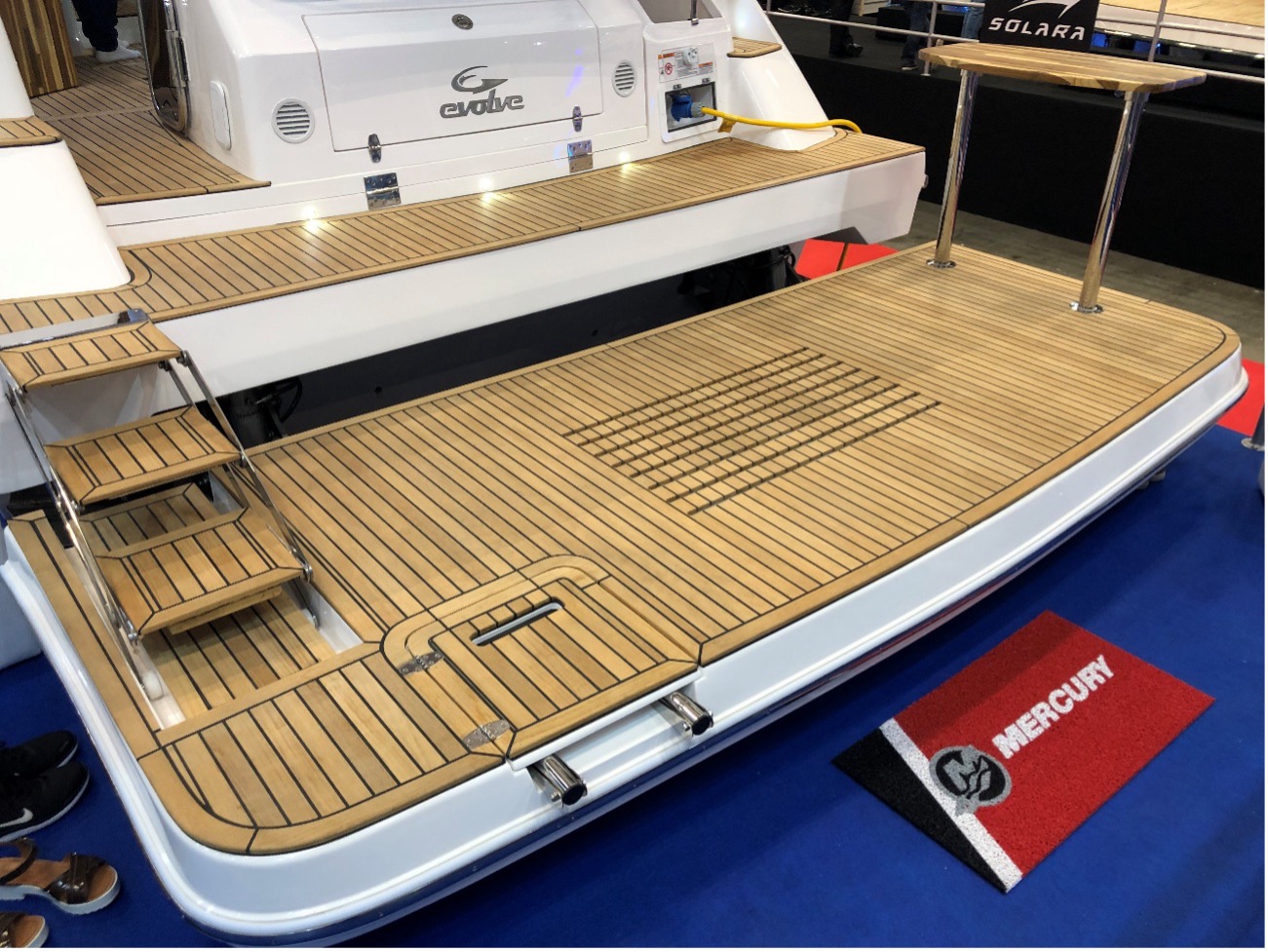

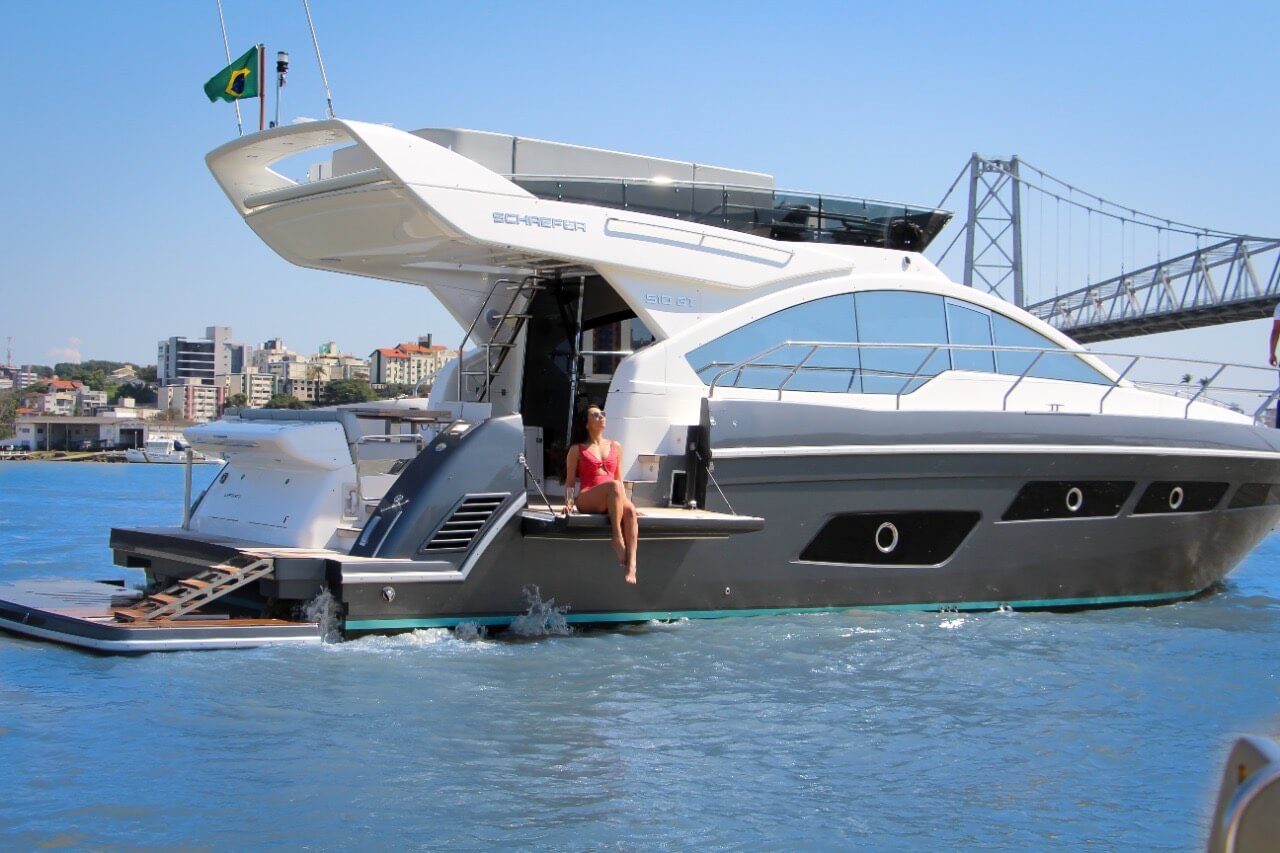

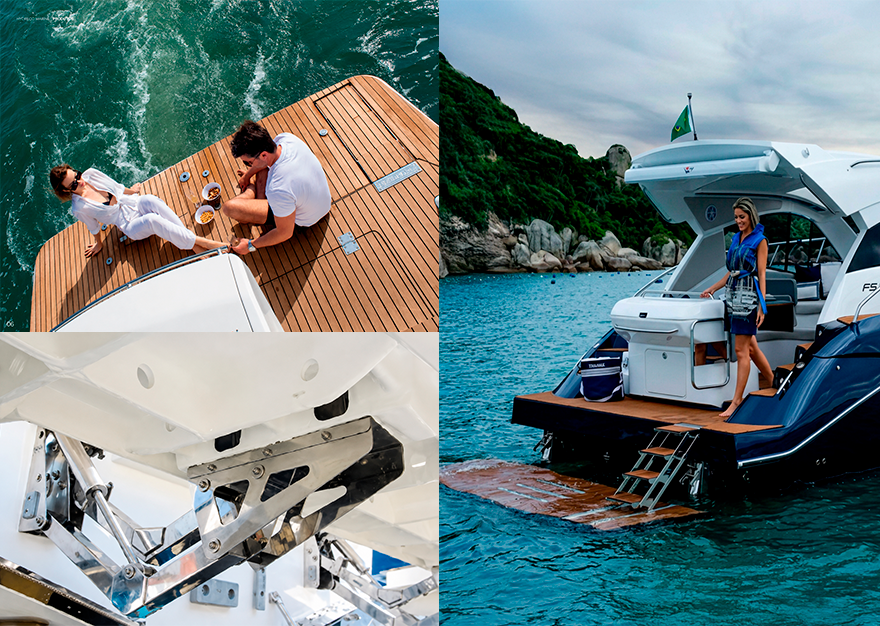

The submersible stern platform offers easy access to the leisure activities in water, and connects life on board with the sea. A dinghy or jet ski can be placed on the platform, making it easy to launch. Submerged, the platform also stabilizes the boat so you can enjoy life on board with complete peace of mind.
TECHNICAL INFORMATION
STANDARD FEATURES

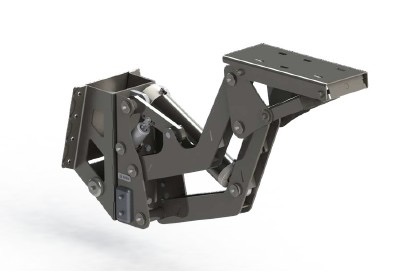

- Frame and cylinders in AISI 316L stainless steel
- Hydraulic pumps up to 200 Bar
- Mechanical safety lock
- Wall-mounted control panel
- 1200/2200w - 12/24V
- Hydraulic unit with hand pump included
Installation angle
- from: 0°
- to: 30°

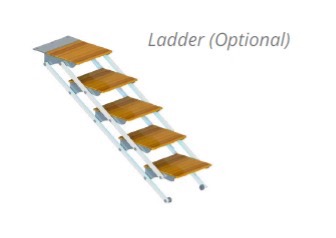

- Ladder (Optional)
Lifting Capacity
- from:500 Kg
- to: 1500 Kg
We produce different tender-lift models, based on the type of boat and load capacity
| Product | Lifiting capacity | Boat size | Leadtime |
| TENDER LIFT300 | 300kg | Up to 25ft | 60 days |
| TENDER LIFT 600 | 600KG | ||
| TENDER LIFT 800 | 800KG | ||
| TENDER LIFT 1000 | 1000KG | ||
| TENDER LIFT 1250 | 1250KG |
