GANGWAYS
About the Product

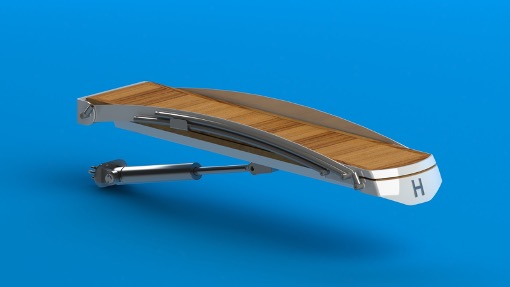

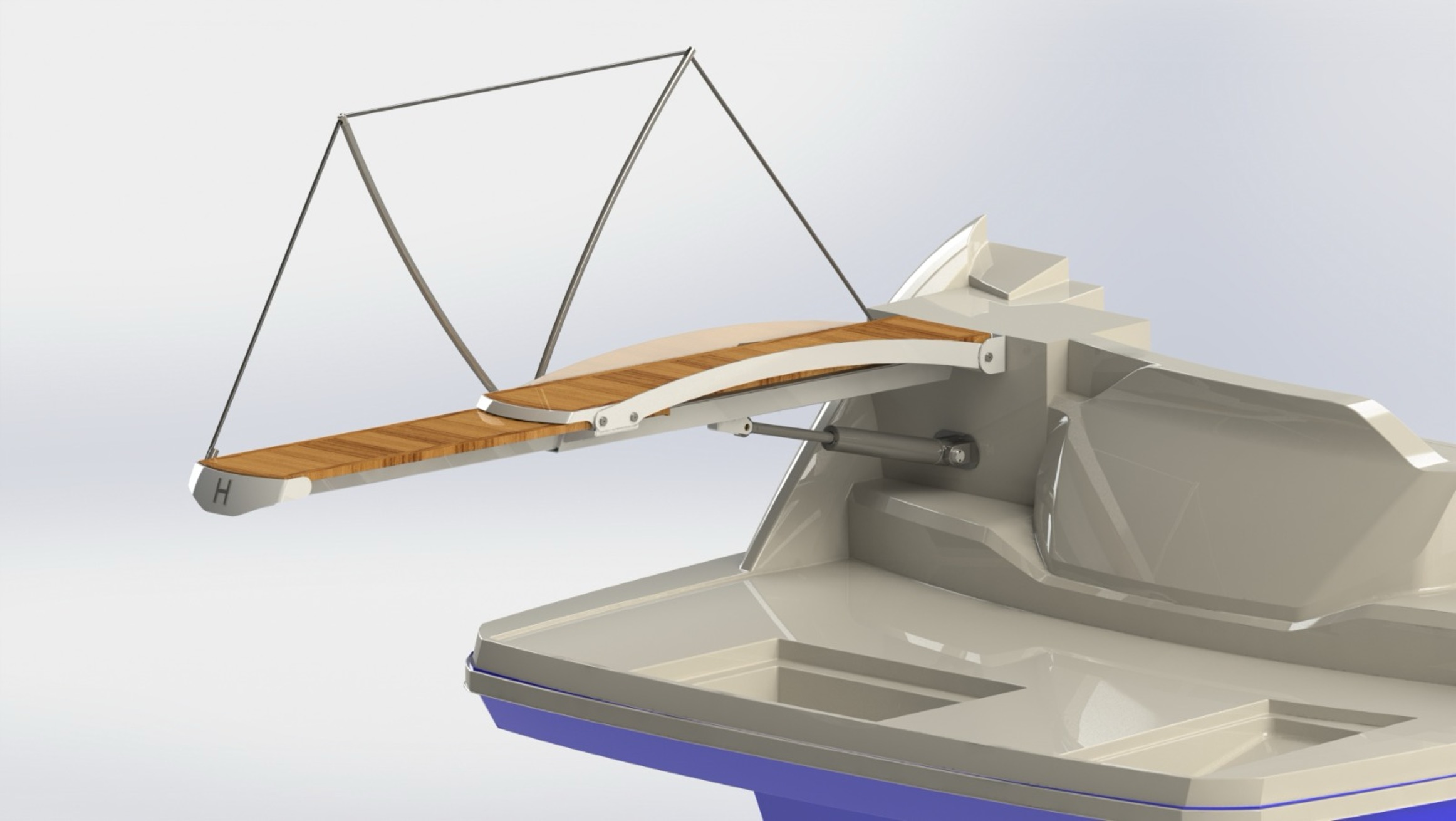

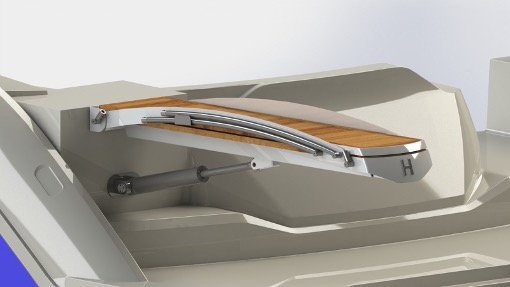

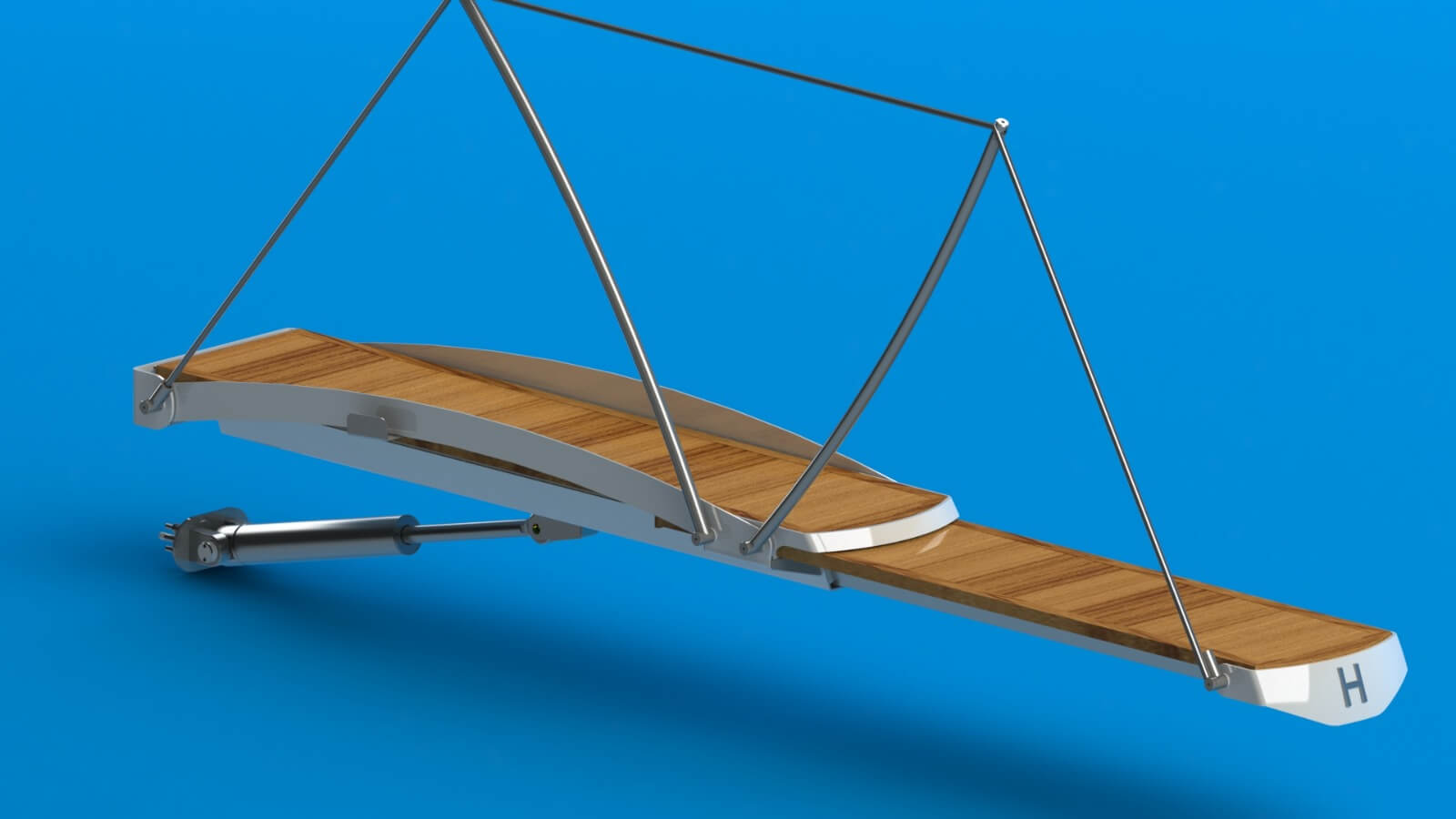

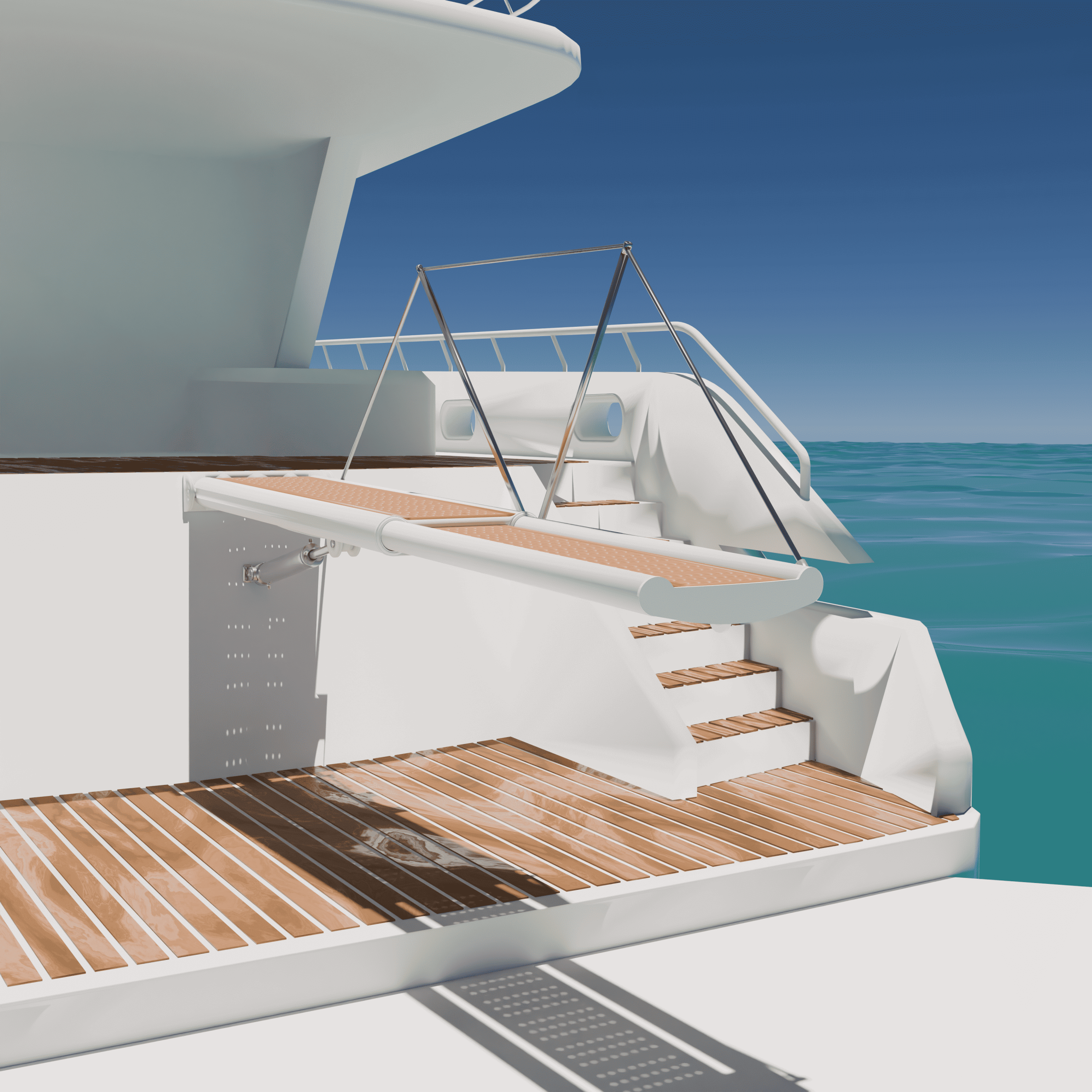

The Hydreco Marine hydraulic gangways have a telescopic movement and are ideal for facilitating the embarkation and disembarkation of crew members. They have a load capacity of 150 to 400 kgs and can be operated by a control panel or a remote control. It is the ideal solution for ensuring comfort and safety when accessing the boat.
TECHNICAL INFORMATION
STANDARD FEATURES
- Frame and cylinders in AISI 316L stainless steel
- Hydraulic pumps up to 200 Bar
- Mechanical safety lock
- Wall-mounted control panel
- 1200/2200w - 12/24V
- Hydraulic unit with hand pump included
Lifting Capacity
- from: 150 Kg
- to: 350kg
The Gangway platform kit includes
- Hydraulic gangway mechanism
- Hydraulic power unit for platform: 1 unit
- Stainless steel hose kit: 1 unit
- Electronic control kit: 1 unit
- Electrical harness kit: 1 unit
- Hydreco Up/Down remote control: 1 unit
| Product | Size | Boat size | Leadtime |
| GANGWAY 190 | 1.90mt | From 35ft | 60 days |
| GANGWAY 220 | 2.20mt | ||
| GANGWAY 250 | 2.50mt | ||
| GANGWAY 270 | 2.70mt | ||
| GANGWAY 290 | 2.90mt | ||
| GANGWAY 300 | 3.00mt / 350kg lifting capacity | 90 days |
